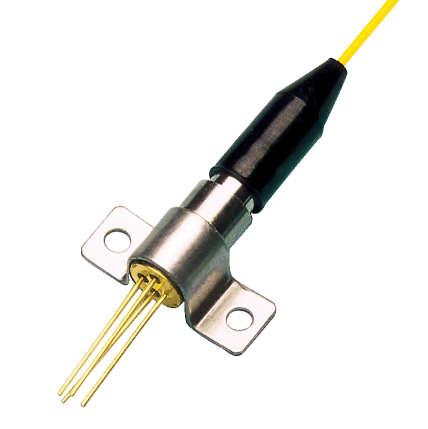

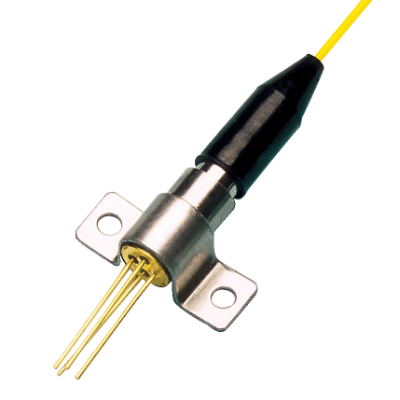

InGaAs Pin APD Module
InGaAs Pin APD Module

InGaAs Pin APD Module

Product ID : YSCAPD-PXX-50
Product Tags :
Product Description

InGaAs Pin APD Module

Features

Ø Active diameter 50μm

Ø Small dark current

Ø High reliability

Ø Gain of APD20

Applications

Ø OTDR

Ø CATV Repeaters

Ø Optical repeaters equiment


Absolute maximum ratings

Parameter

Symbol

Condition

Ratings

Unit

Storage temperature

Tstg

-

-55~+85

°C

Operating temperature

Top

-

-40~+85

°C

Reverse current

Ir

CW

3

mA

Forwardcurrent

If

CW

10

mA

Soldering time

-

-

10

s

Soldering Temp

-

-

260

°C

Optical & electrical characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test condition

Detection range

λ

1000

-

1700

nm

-

Dark current

Id

-

0.5

2

nA

M=10¢e=0,T=25°C

Quantum efficiency

Re

0.80

-

-

uA/uW

M=10λ=1310nm

Rise and Fall time

Tr/Tf

-

0.1

-

ns

RL=50Ω

Voltage

VBR

-

40

48

V

Id=10uA, ¢e=0

Capacitance

Ct

-

0.5

-

pF

M=10f=1MHz ¢e=0

Vesponsivity time max plax

Mmax

20

-

-

-

VR=0.98 VBR

Recommend  operate voltage

VR

0.9


0.95

xVBR

M=10λ=1550 nm

¢=1







PIN assignment:Bottom view



pin

function

1(case)

ground

2

PD(-)

3

PD(+)

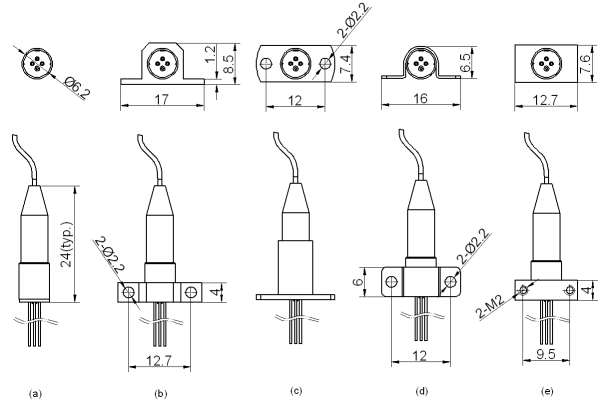

Saddle Type
